OIML and NAWI approval for XT1000 and XT2000 - with remote configuration

20-08-2018

OIML and NAWI approval for XT1000 and XT2000 - with remote configuration

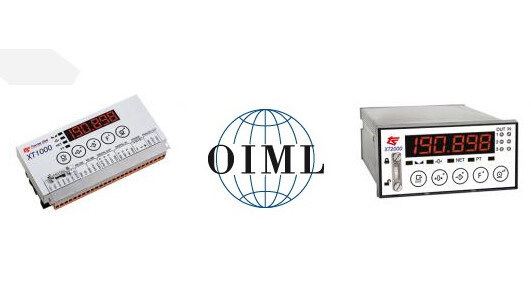

Thames Side Sensors Ltd (United Kingdom) - The high speed weighing indicators / transmitters XT1000 and XT2000 have been awarded approval according to OIML R76 and EN 45501:2015 (as a Non-Automatic Weighing Instrument). This allows them to be used in industrial scales and systems used within legal for trade processes.

The XT1000 and XT2000 offer an industry-leading data capture rate of 2400 measurements/second from the load cell(s) and extremely high accuracy of processing. RS232 and RS485 (with MODBUS) communications are standard on all versions, with options of analogue output (0-20mA, 4-20mA, 0-10V with galvanic isolation) or instead Profibus DP-V0, Profinet I/O Realtime (Class A) or Ethernet/IP protocols. The relevant PLC configuration files are provided to be able to interface quickly with all major brands of PLC systems.

A built-in check-weigher function is available as standard on all versions, which now provides check-weigher manufacturers with an OIML and EN 45501:2015 approved solution that requires the minimum of set up.
