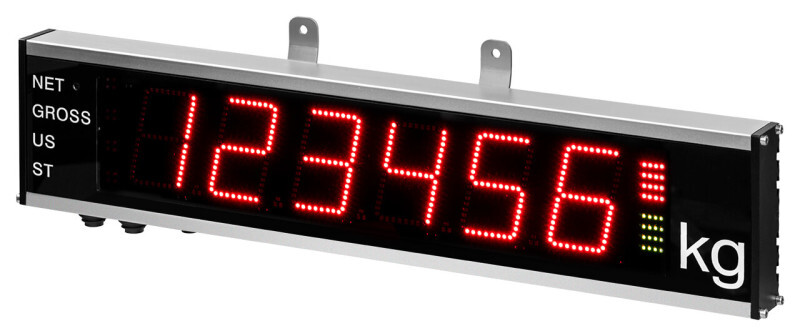

New RD 195 large-scale Display by BOSCHE

Bosche GmbH & Co. KG (Germany) - In areas where good legibility at a distance is essential, the new RD 195 remote and large-scale display by BOSCHE is in its element. It’s ideal for instance as a truck scale or for use as a secondary display in industry. Bright Osram LEDs with a 95 mm digit height ensure that measurement results are depicted clearly. The digit width is 55 mm and each segment has 56 LEDs. In addition, a brightness sensor automatically adjusts them to the light conditions. The four status indicators are: Gross / Net / Unstable / Stable. The six-digit display has a wide viewing angle and built-in lights (red/green) quickly detect weight limit breaches.

The robust housing made of powder-coated aluminium with waterproof, screwable plugs complies with the IP65 protection class and is therefore suitable for outdoor use. A special hood can be optionally ordered as well as a protection against sun and rain. The low mounting depth of 50 mm and variable hanging using wall hooks are very convenient for installation purposes.

The RD 195 is controlled via an RS232 or RS485 interface with a data transfer rate of 2400~9600 bps. The data plugs are 7-pin and are attached directly to the display housing using the socket part. Optionally, the large display can also be equipped with an ethernet connection. The communications log is customisable and therefore compatible with a large number of devices.

With a weight of 6.5 kilos and dimensions of (W x H x D) 745 x 160 x 50 mm, the RD 195 is at home on many job sites.
